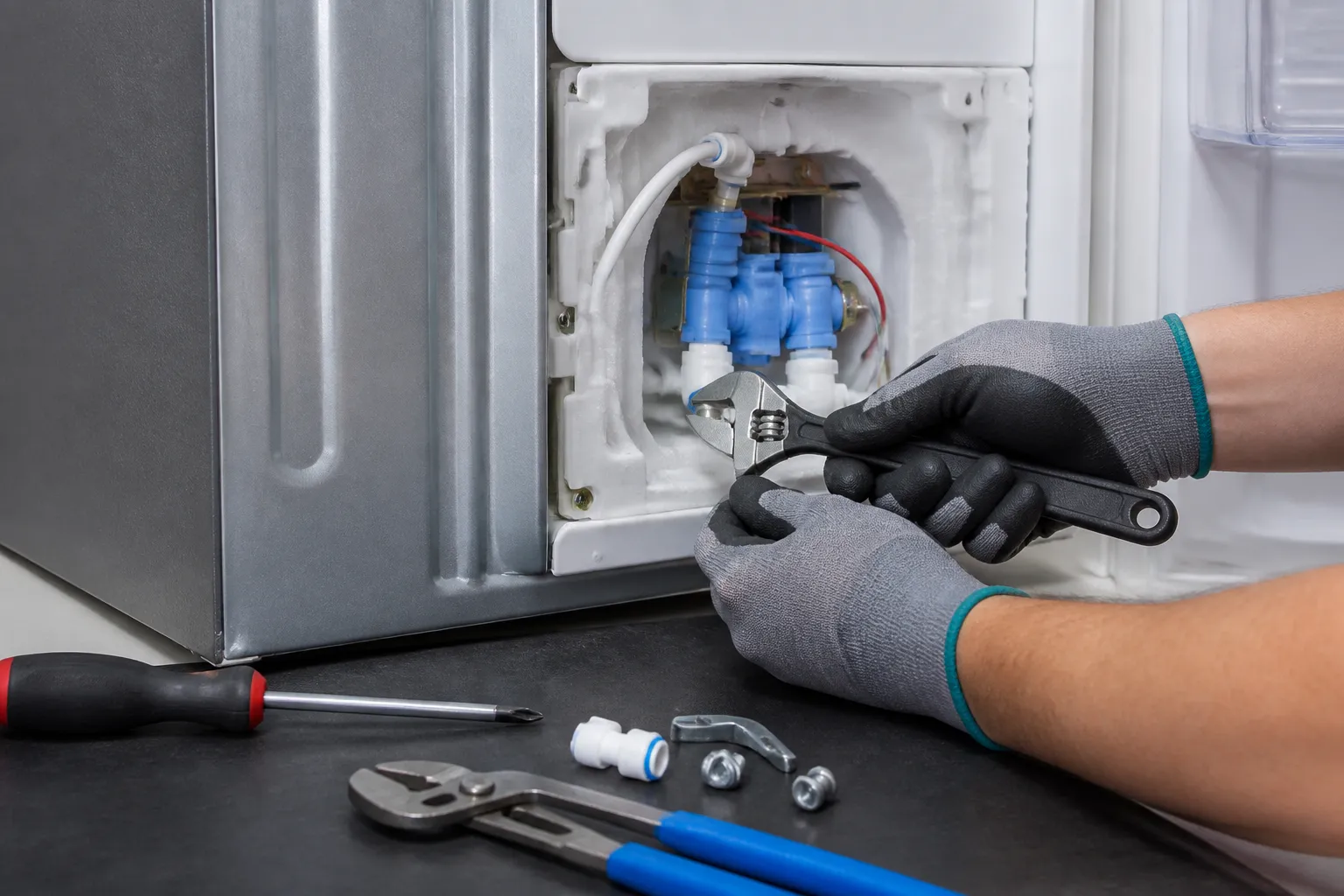

Whirlpool WRF535SWHZ Ice Maker Water Inlet Valve Replacement — Step-by-Step Guide

Whirlpool WRF535SWHZ Ice Maker Water Inlet Valve Replacement — My Complete Repair Guide

When your ice maker stops producing ice or produces it sporadically, nine times out of ten on a Whirlpool WRF535SWHZ, it’s the water inlet valve that’s gone bad. You’ll notice no water flowing to the ice maker, sometimes a quiet clicking sound from behind the fridge, or error codes related to ice production. This is one of the most common failures I see on this model — it’s a straightforward replacement that’ll take you about 90 minutes if you follow along. I’ve fixed this on at least a dozen Whirlpool WRF535SWHZ units and I’ll walk you through exactly what I do.

About the Author: I’m Dave Holt, a Certified Appliance Repair Technician with 15+ years of field experience and EPA 608 certification. I’ve repaired thousands of appliances across the country. My goal is to help you fix it yourself and save a couple hundred dollars.

Quick Overview

Difficulty: MODERATE
Time Required: 60–90 minutes
Potential Savings: $150–$300 vs. a service call
Special Tools: None beyond standard hand tools — you’ll want a 1/4″ nut driver and a multimeter if you want to test before replacing

Symptoms That Tell Me It’s This Problem

Ice maker produces no ice or very little ice despite the bin being empty — this is the #1 sign on a Whirlpool WRF535SWHZ that the inlet valve is stuck closed.
You hear a faint clicking or buzzing sound coming from the back of the fridge for a few seconds, then silence — that’s the solenoid trying to open but can’t fully energize.
Water is leaking from underneath the refrigerator or pooling inside the fridge compartment near the ice maker — the valve diaphragm has ruptured.
The ice maker cycles through its fill phase but the fill tube remains completely dry — when I see this on a Whirlpool WRF535SWHZ, I know water isn’t reaching the mold.
Error code appears on the display (varies by model year, but water-related codes point here first).
You’ve confirmed the water supply line to the fridge is intact and pressurized at 20–120 PSI — so it’s not a line freeze or supply issue.

⚠️ Safety Warning — Read Before You Touch Anything

The very first thing I do — every single time — is unplug the Whirlpool WRF535SWHZ from the wall outlet. Even though you’re working with a low-voltage solenoid, there’s a control board nearby, and refrigerators have capacitors that can hold a charge. If you’re working near the water supply inlet at the back of the unit, also turn off the water supply line at your home’s shutoff or at the valve behind the fridge — water under pressure can spray and cause damage. Never use the unit while you have the back panel or inlet valve assembly exposed.

Parts You’ll Need

Water Inlet Valve Assembly — OEM Part #: W10408179 or W10498976 (check your specific Whirlpool WRF535SWHZ serial number; both are used on 2018 models depending on production date) — This is the complete solenoid valve unit that controls water flow to the ice maker. It’s a direct fit.
Water Supply Line Connector (Optional) — OEM Part #: W10282501 — If your existing connection shows cracks or mineral buildup, replace the fitting while you’re in there; it’s cheap insurance.
Gasket or O-ring Kit — OEM Part #: W10837720 — Some repair techs replace the seals separately; I usually just go with the new valve, but this is available if you’re rebuilding.

Tools Required

1/4″ nut driver (or 1/4″ socket wrench)
Philips head screwdriver (#2)
Flathead screwdriver (small, for prying clips)
Adjustable wrench or 9/16″ wrench (for water line compression fittings)
Multimeter (optional but recommended for testing the solenoid before replacing)
Bucket or towels (to catch water spillage)
Needle-nose pliers (helpful for removing clip-style connectors)

Step-by-Step: How I Replace the Ice Maker Water Inlet

Step 1: Unplug and Shut Off Water

Unplug your Whirlpool WRF535SWHZ from the wall — the outlet is usually to the right side of the unit. Next, locate the water shutoff valve behind the fridge. Most homes have this either at the main shutoff or on the line running into the back of the refrigerator itself. Turn it clockwise until it stops; you should feel slight resistance. Place a bucket or towels on the floor behind the unit — there will be water trapped in the supply line, and it’ll spill when you disconnect.

Pro Tip from Dave: Don’t skip the water shutoff. I’ve seen homeowners try to work on the inlet valve with water still pressurized, and it makes a mess and makes the job harder. Takes 30 seconds to turn the valve, saves 20 minutes of cleanup.

Step 2: Remove the Kickplate and Access the Back Panel

Pull the Whirlpool WRF535SWHZ away from the wall about 2–3 feet. The kickplate is the panel at the very bottom front of the unit. On the WRF535SWHZ, it’s held by two Phillips screws — one on each side, about 2 inches from the corner. Remove both screws and slide the kickplate straight out. Now you can see the lower-rear area of the unit. The water inlet valve assembly is located on the lower-left rear of the Whirlpool WRF535SWHZ, just above the compressor compartment. You’ll see a small metal or plastic box with two hoses connected to it.

Step 3: Identify and Disconnect the Water Supply Line

Look at the inlet valve on your Whirlpool WRF535SWHZ. The water supply line coming from the wall enters from the bottom-left side of the valve; it’s held on by a compression fitting (nut-style connection). Using your 9/16″ wrench, hold the valve body steady with one hand and turn the nut counterclockwise with the other. It’ll take 3–4 turns to loosen; you’ll feel water drip out, which is normal. Once loose, pull the line gently away. Have your bucket ready — there’s always a bit more water inside the line.

Pro Tip from Dave: Before you disconnect the line, take a photo of the entire valve assembly with your phone. Seriously — the solenoid connector, the hose routing, the screw locations. You’ll thank yourself when it’s time to reconnect everything. I’ve forgotten the exact clip orientation more times than I’d like to admit.

Step 4: Disconnect the Solenoid Connector

The solenoid coil sits on top or to the side of the valve body on your Whirlpool WRF535SWHZ. It’s a small cylindrical piece with an electrical connector. The connector is usually a 2-pin push-on clip in white or tan plastic. Pinch both sides of the clip gently and pull straight away from the solenoid. Don’t twist — just straight pull. You might hear a small click as it releases.

Step 5: Disconnect the Outlet Hose from the Ice Maker

Two hoses exit the valve body on the Whirlpool WRF535SWHZ. One goes up to the ice maker, one may go to a water dispenser or is capped off. The one going to the ice maker is usually on the top-right of the valve. It’s held on with a push-clip or a small hose barb. If it’s a push-clip, push the tab down and pull the hose straight out. If it’s a hose barb, use your needle-nose pliers to gently wiggle and pull — don’t yank, or you’ll tear the hose. This hose doesn’t have much water in it, but a small amount may drip.

Step 6: Remove the Mounting Bracket Screws

The valve body itself is bolted to a bracket on the lower-left rear of your Whirlpool WRF535SWHZ. There are typically two 1/4″ bolts — one on the top and one on the bottom of the bracket. Using your 1/4″ nut driver, turn both counterclockwise and remove completely. The valve may stick slightly to the mounting surface (old gasket material), so wiggle it gently as you pull it out. Set it aside on a towel.

Pro Tip from Dave: Look at the mounting surface where the old valve sat. On a Whirlpool WRF535SWHZ, there’s usually a rubber gasket or adhesive-backed seal. Peel off the old gasket completely and wipe the area with a dry cloth. If you leave old gasket material under the new valve, it won’t seal properly and you’ll have a slow leak in 6 months. I learned that the hard way.

Step 7: Install the New Valve Gasket (If Needed)

If your new water inlet valve for the Whirlpool WRF535SWHZ comes with a pre-attached gasket, you’re good. If not, and if you removed the old gasket, apply a thin layer of plumber’s grease (food-safe) or a new adhesive gasket to the mounting surface. Don’t use silicone caulk — it’ll make it hard to remove if you need to service it again. Press the new gasket firmly into place on the WRF535SWHZ mounting bracket.

Step 8: Install the New Water Inlet Valve

Align the new inlet valve with the two bolt holes on the Whirlpool WRF535SWHZ mounting bracket. The inlet (water supply fitting) should face downward and to the left, and the outlet (to the ice maker) should face upward and to the right — match your photo from Step 3. Slide it into place and insert both 1/4″ bolts. Tighten them snugly with your nut driver — don’t over-tighten, or you’ll crack the plastic valve body. “Snug” is about finger-tight plus one quarter-turn.

Step 9: Reconnect the Solenoid Connector

Take the 2-pin connector on the new valve and plug it back into the solenoid coil. Push it straight on until you hear a click. On your Whirlpool WRF535SWHZ, the connector should be oriented so the tabs align with the slots on the coil — there’s only one correct way, and you’ll feel it snap in. Don’t force it.

Step 10: Reconnect the Outlet Hose

Reconnect the hose that goes to the ice maker to the outlet port on the top of the new valve. If it’s a push-clip connection, push until you hear a click. If it’s a barb, slide it on firmly — it should be snug enough that you can’t pull it off by hand easily.

Step 11: Reconnect the Water Supply Line

This is where it’s easy to mess up, so slow down. Take the water supply line and push it onto the inlet port of the new Whirlpool WRF535SWHZ valve (the port facing downward). Make sure the ferrule (small metal or plastic sleeve) is seated properly at the end of the line — it should be flush. Now thread the compression nut on by hand first — turn it clockwise until you feel resistance. Then use your 9/16″ wrench to tighten it another 1.5 turns. Don’t over-tighten — you’ll strip the threads. Snug is the goal, not cranked.

Pro Tip from Dave: After you tighten the water line, turn the water supply back on at the shutoff valve (counterclockwise) and check for leaks for 30 seconds before plugging the fridge back in. It’s much easier to fix a leak connection now than to have water dripping inside your refrigerator. If it leaks slightly, tighten the nut another half-turn and recheck.

Step 12: Reassemble and Test

Push the Whirlpool WRF535SWHZ back into place, making sure the kickplate area is clear. Reinstall the kickplate by aligning the clips at the top and sliding it in, then secure with the two Phillips screws. Plug the refrigerator back in. Listen for the water inlet solenoid to click — it should make a brief buzzing or clicking sound within the first few minutes as the ice maker initiates its cycle. Check the ice maker bin after 4 hours. You should see water in the mold starting to freeze. After 8–12 hours, you should have a full batch of ice cubes.

Pro Tip from Dave: Don’t expect perfect ice from the first cycle. The first few batches on a Whirlpool WRF535SWHZ often come out smaller or slightly cloudy — that’s normal as the system clears air and mineral particles. By the third or fourth cycle, you’ll get the clear, full-size cubes you expect.

Troubleshooting — If It Still Isn’t Working

No solenoid click sound and no water flow: Double-check your solenoid connector — it may not be fully seated. Also, verify the water shutoff is fully open (counterclockwise is open). If both are correct, the issue may be upstream (water line frozen or kinked), not the valve itself.
Water leaking from the compression fitting: The nut needs another quarter to half-turn. Using your wrench, tighten it slightly more. If it still leaks after you’ve tightened it firmly, the ferrule may be damaged — you may need to replace the supply line.
Ice maker cycles but produces no ice: The solenoid coil may not be getting power. If you have a multimeter, set it to Rx1 (ohms) and touch the probes to the two pins of the solenoid coil. You should read between 500–1000 ohms. If it reads “0” or “infinity,” the coil is bad and you need to replace the entire valve assembly again. If the reading is in range, the issue is likely in the control board, not the valve.
Slow ice production (takes 24+ hours for a full bin): The new valve may be partially obstructed, or the water pressure to your home is low (below 20 PSI). Check your inlet water pressure with a gauge. If it’s below 20 PSI, that’s a supply issue, not a valve issue. If pressure is normal and the valve is new, the fill time setting in the ice maker may need adjustment — consult your Whirlpool WRF535SWHZ manual or call the factory service line.
Solenoid clicks but no water flow: The valve seat inside the new valve may be stuck or blocked by a small piece of debris. Try turning off water, disconnecting the valve inlet line again, and flushing the line into a bucket to clear any particles. Reconnect and retest.
Error code appears on the display: Some error codes clear automatically once the new valve begins operating correctly. Run a full ice cycle (allow 8–12 hours). If the code persists, write down the code and reference your Whirlpool WRF535SWHZ manual — it may point to a separate sensor or control board issue.

When to Call a Professional Instead

You’ve replaced the valve and the ice maker still doesn’t work: If the solenoid clicks and the water line is reconnected correctly but you’re still not getting water flow after 24 hours, there may be an issue with the ice maker motor, the control board, or a sensor. This is beyond a simple valve replacement and warrants a service call.
You see refrigerant oil leaking or detect a chemical smell: Do not attempt to work on the sealed refrigeration system yourself. Refrigerant handling requires EPA 608 certification. Stop work immediately and call a certified technician.
The control board is showing multiple unrelated error codes: If after the valve replacement you’re getting codes related to temperature, frost, or compressor issues in addition to water codes, the control board itself may be failing. This is not a DIY repair.
